Tool-less connection at the push of a button

Type J Thermocouple Connections now enhanced with SQUICH® Tool-less technology

Fast, tool-less connectivity is shaping the future of modern electrical systems, transforming how we power and manage them. Simplifying the assembly and mounting of connectors is crucial in boosting efficiency and flexibility in industrial and small-scale settings.

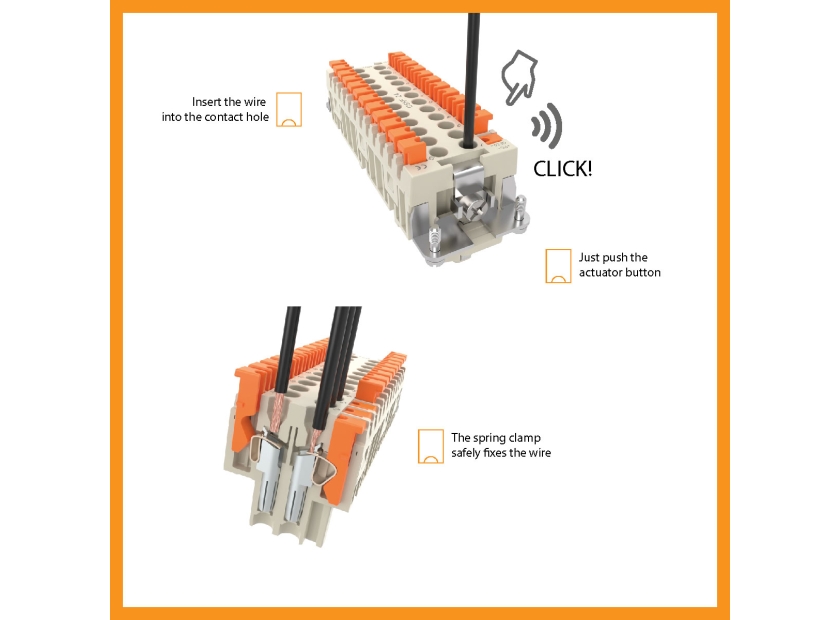

At the heart of ILME’s research and development is the drive for easy installation and secure wiring, powered by our pioneering SQUICH® technology. This innovative solution allows for tool-less connection at the push of a button while guaranteeing resistance to extreme temperatures, shocks, and vibrations.

The SQUICH® Series has been further enhanced with the addition of the latest variant for Type J Thermocouples.

FEATURES

Widely used in temperature sensing applications where precision monitoring is critical — including die casting, moulding, and process engineering — Type J Thermocouples now meet the SQUICH® system for a quick, effortless, and secure installation and connection of thermocouple wires.

The CSHT Series for 16 A is the latest variant of the established SQUICH® CSH Series. It is available in 10, 16, or 24-pole inserts and includes the following features:

Two rows of contacts: one made from iron (Fe, gold-plated for corrosion resistance), and the other from constantan alloy (CuNi), ensuring accurate and consistent temperature readings over time.

  • A wide temperature range for Type J thermocouples: from -210°C to +760°C.
  • Full compatibility with prepared, unprepared, and solid wires, providing secure and dependable electrical connections.
  • Why choose the SQUICH® series?
  • The new CSHT Series for Type J Thermocouples integrates seamlessly with the existing range of SQUICH® solutions, expanding our already robust offering. Whether you need a standard version for general applications, a high-durability option for HNM –High Number of Matings, or a stamped contact variant for large serial productions where time and costs drive the needs, ILME’s SQUICH® technology ensures fast, tool-less, and highly secure connectivity.
